| Stockcode | : | 658331 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | OKUMA |

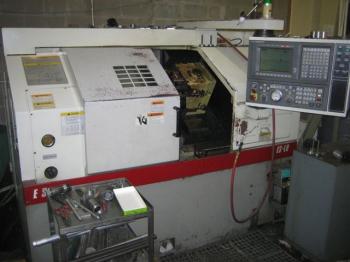

| Model | : | ES-L8 |
| Year | : | 1997 |
| Price | : | P.O.A. |
| Description | : | |
|
MAXIMUM SWING OVER BED ................. 17.7" MAXIMUM TURNING DIAMETER ............... 10.6" MAXIMUM TURNING LENGTH ................. 20.0" X AXIS TRAVEL .......................... 6.1" Z AXIS TRAVEL .......................... 20.47" RAPID TRAVERSE RATE X AXIS ............. 591 IPM RAPID TRAVERSE RATE Z AXIS ............. 787 IPM SPINDLE BORE ........................... 2.44" MAXIMUM BAR CAPACITY ................... 2.0" SPINDLE SPEEDS ......................... 100 - 4,200 RPM SPINDLE MOTOR .......................... 10 HP TURRET CAPACITY ........................ 8 STATION TURRET TAILSTOCK QUILL TAPER .................. MT #5 TAILSTOCK QUILL DIAMETER ............... 3.54" TAILSTOCK QUILL STROKE ................. 3.94" APPROXIMATE DIMENSIONS ................. 131" x 66" x 69" MACHINE WEIGHT (APPROXIMATE) ........... 9,000 LBS EQUIPPED WITH: - OKUMA OSP U10L CNC CONTROL w/IGF - 8" 3 JAW HYD. CHUCK OR HYD. COLLET CHUCK - 8 POSITION TURRET - TAILSTOCK - CHIP CONVEYOR - ALL AVAILABLE TOOL HOLDERS - ALL AVAILABLE MANUALS
| ||
