| Stockcode | : | 658328 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | DAEWOO |

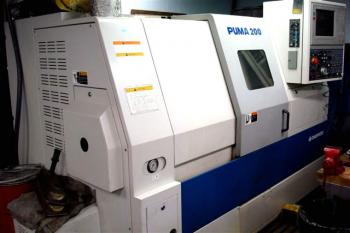

| Model | : | PUMA 200C |
| Year | : | 1997 |
| Price | : | P.O.A. |
| Description | : | |
|
Chuck----------------------------------8" Spindle bore---------------------------3" Bar Capacity---------------------------2.5" Max. swing over bed--------------------20.1" Swing over saddle----------------------13" Max. turning diameter------------------13.4" Max turning length---------------------16.1" X-axis travel--------------------------9.5" Z-axis travel--------------------------17.3" X-axis rapid traverse rate-------------800 IPM Z-axis rapid traverse rate-------------1000 IPM Spindle speeds-------------------------45 - 4,500 RPM Spindle Motor--------------------------20 HP Turrent capacity-----------------------12 station turret Tailstock quill taper------------------MT #4 Tailstock quill diameter---------------3" Approximate machine weight-------------9,000 lbs EQUIPPED WITH - MITSUBISHI 520L CNC CONTROL - 8" 3-JAW HYD. CHUCK - TOOL SETTER - 12 STATION TURRET - TAILSTOCK - CHIP CONVEYOR - ALL AVAILABLE TOOLHOLDERS - ALL AVAILABLE MANUALS LOW HOUR MACHINE: ON HOURS 4241 / RUN HOURS 828
| ||
