| Stockcode | : | 658323 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MORI SEIKI |

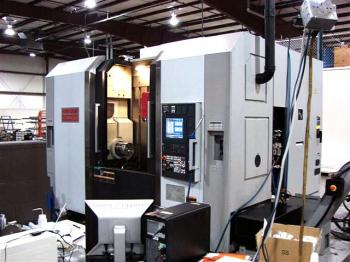

| Model | : | NT-3200DCG/1000SZ |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
INCLUDED FEATURES: Machine utilizes full DCG (Driven Center Gravity) Box-in-box, dual ball screw driven design. Full chip enclosure & safety door interlock Leveling pads & built-in work light Standard tool holding package & tool presetter 27 PSI coolant system Lower Turret (Z) 1st Spindle: A2-6, 2.6" bar capacity DDS spindle motor, 5,000 RPM 20/15 HP 8" 3-jaw chucking system Min. spindle indexing angle: 0.0001 degrees 2nd Spindle: A2-6, 2.9"" through hole, 2.6" bar capacity DDS spindle motor, 5,000 RPM 20/15 HP 8" 3 jaw chuck Min. spindle indexing angle: 0.0001 degrees Tool spindle: DDS spindle motor, 12,000 RPM, 15/10 HP High Torque spindle motor Spindle taper BT40 (Can change to CT40) Supported by box way, octagonal RAM Through Spindle Coolant I/F (Flange Style) +/- 120 degrees B axis indexing B axis index time: 0.6 seconds = 90 degrees 1 degree B axis indexing angle ATC: Max tool diameter w/o adjacent tools: 4.9" Max tool length: 7.8" Max tool mass: 8.8 lbs Tool magazine: 40 tool capacity MORI SEIKI MAPPS III (711 Control) 3D rotational graphics PCMCIA and RS232 I/F 50MG part program storage 250 stored programs Tool life management Tool load monitoring Tool wear offset 3D interference crash avoidance software for automatic and manual modes. ADDITIONAL OPTIONS: Chip conveyor belt type lift-up External M-code output 5 codes Tool storage capacity 40 Milling capability on lower turret ATS Collet Chucks A6-S26TLS (Main) True Length style A6-S26TLS (Sub) True Length style MHP-high pressure pumps 350 psi with 10GPM flowrate Tooling included: Value 3 T-00250 additional O.D. Double cutting holder $1,800.00 1 T03018 Face and I.D. cutting holder $500.00 2 T10119 additional boring bar holder $1,800.00 1 T10139 Double boring bar holder $600.00 1 T00252 Cut off holder $420.00 4 T32254 live tooling O.D. cutting $4,400.00 4 T32255 live tooling face cutting $8,000.00 2 T32271 live tooling both face cutting $7,200.00 Software Included: One seat of ESPRIT for Mori Seiki NT VALUE: $18,000 Machine is under power and running Machine has low hours and has run mostly small parts, no iron Machine is in VERY GOOD Condition | ||
| View all |
|
MORI SEIKI (54) NT-3200DCG/1000SZ (1) CNC Lathes (382) Turning Centres (337) |
United States
