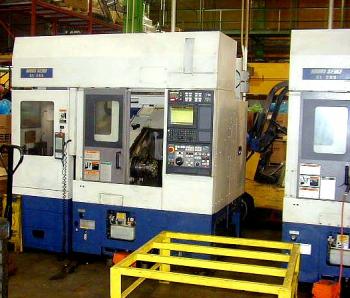

| Stockcode | : | 658321 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MORI-SEIKI |
| Model | : | CL-203B |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|
SWING OVER BED .......................... 20.3" MAX TURNING DIA ......................... 16.1" MAX TURNING LENGTH ...................... 11.4" BAR WORK CAPACITY ....................... 2.5" TYPE OF SPINDLE NOSE .................... A2-6 THROUGH SPINDLE HOLE DIA ................ 2.8" SPINDLE SPEED RANGE ..................... 35-3500 RPM X-AXIS TRAVEL ........................... 9.3" Z-AXIS TRAVEL ........................... 12.2" NUMBER OF TOOL STATIONS ................. 10 TURRET INDEX TIME ....................... 0.7 SEC. SHANK HEIGHT FOR SQUARE TOOL ............ 1" SHANK DIAMETER FOR BORING BAR ........... 1.5" RAPID TRAVERSE RATE ..................... 1,181 IPM SPINDLE DRIVE MOTOR (30 MIN/CONT) ....... 15/10 HP APPROX MACHINE WEIGHT ................... 5390 LBS EQUIPPED WITH: - MSG-803 CNC CONTROL - LG-05 GANTRY-TYPE LOADER - 14 STATION ROTARY WORKSTOCKER (RIGHT SIDE INSTALLATION) - 8" 3-JAW HYDRAULIC CHUCK - MAGNETIC TYPE REAR DISCHARGE CHIP CONVEYOR - ALL AVAILABLE TOOLHOLDERS AND MANUALS
| ||
| View all |
|
MORI-SEIKI (11) CL-203B (1) CNC Lathes (382) Turning Centres (337) |
United States
