| Stockcode | : | 658318 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

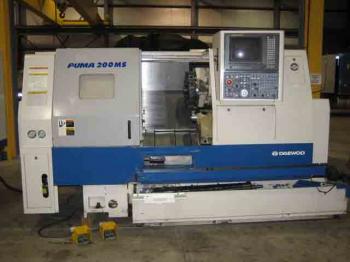

| Manufacturer | : | DAEWOO |
| Model | : | 200LMSC |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
CAPACITY SWING OVER BED: 20.1" SWING OVER SADDLE: 13" RECOMMENDED MACHINING DIA.: 8.3" MAX. MACHINING DIA.: 11.8" MAX. WORK LENGTH: 15.4" DRAW TUBE DIA.:MAIN 2.6" SUB 1.42" TRAVELS X-AXIS: 8.66"(2.76" + 5.91") Z-AXIS: Z/B 22.83" C-AXIS: 360 DEG.(0.001 DEG.) SPINDLE CHUCK DIA.: 8" 3-JAW SPEED RANGE:MAIN 45 – 4500 RPM SUB 60 – 6000 RPM SPINDLE NOSE:MAIN A2-6 SUB 110mm SPINDLE BORE DIA.:MAIN 2.99" SUB 1.77" BEARING DIA. (FRONT):MAIN 4.33" SUB 2.95" TURRET NO. OF TOOL STATIONS (TYPE): 12 (VDI HOLDER) OD TOOL HEIGHT: VDI 30" BORING BAR DIA.:MAIN 1.57" SUB 0.79" INDEXING TIME: 0.15 SEC(1ST SWIVEL) ROTARY TOOL SPEED RANGE: 60 – 6000 RPM COLLETS, MILLING/TAP: 0.6299"/0.4724" FEEDRATES RAPID TRAVERSE: X – 787.4 IPM Z – 984.3 IPM B – 787.4 IPM CUTTING FEED:X,Z .00003937"–19.7"/min MOTOR SPINDLE (CONT/30MIN):MAIN 14.75/20.12 HP SUB 4.96/7.376 HP ROTARY TOOL (CONT/15 MIN): 1.475/4.962 HP COOLANT PUMP: .3218 HP POWER REQUIREMENTS: 40 kVA MACHINE SIZE HEIGHT: 68.50" FLOOR SPACE: 120.47" X 64.37" WEIGHT (W/CNC SYSTEM): 9,127 LBS ELECTRICS: 220 V, 3 PH, 60 CYC EQUIPPED WITH: FANUC 18T CONTROL FULL C-AXIS 8" 3-JAW HYDRAULIC CHUCK - MAIN SPINDLE 3J COLLET CHUCK - SUB SPINDLE SMW SPACESAVER 2000 BARFEED TOOL PROBE PARTS CATCHER WITH CONVEYOR (NO BELT) CHIP CONVEYOR MISC. SPINDLE LINERS COMPLIMENT OF TOOL HOLDERS, STANDARD AND LIVE | ||
