| Stockcode | : | 658316 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

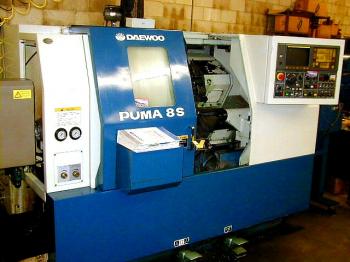

| Manufacturer | : | DAEWOO PUMA |
| Model | : | 8S |
| Year | : | 1995 |
| Price | : | P.O.A. |
| Description | : | |
|
SPECIFICATIONS: SWING OVER BED ........................................ 19.7" MAX. TURNING LENGTH ............................ 14.6" MAXIMUM TURNING DIAMETER .............. 14.2" X AXIS TRAVEL ............................................ 7.9" Z AXIS TRAVEL ............................................ 15.0" RAPID TRAVERSE RATE X AXIS ................ 787 IPM RAPID TRAVERSE RATE Z AXIS ................. 945 IPM SPINDLE NOSE ............................................. A2-6 SPINDLE BORE ............................................ 2.4" MAXIMUM BAR CAPACITY ...................... 2" SPINDLE SPEEDS ........................................ 50-5,000 RPM SPINDLE MOTOR ........................................ 20 HP TURRET CAPACITY .................................... 10 TAILSTOCK QUILL TAPER ........................ MT #4 TAILSTOCK QUILL DIAMETER ................. 2.6" TAILSTOCK QUILL STROKE ..................... 3.9" MACHINE WEIGHT (APPROXIMATE) ...... 7,500 LBS EQUIPPED WITH: - FANUC 0T CNC CONTROL - HYDRAULIC COLLET CHUCK - TOOL SETTER - PARTS CATCHER - 10 POSITION TURRET - TAILSTOCK - LNS QUICKLOAD BARFEED - ALL AVAILABLE TOOLHOLDERS AND MANUALS | ||
