| Stockcode | : | 658314 |

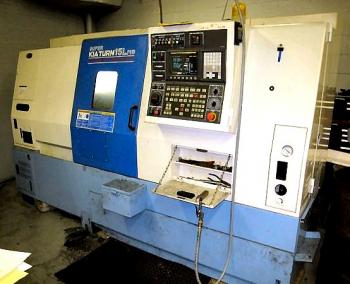

| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | KIA |
| Model | : | 15 LMS |
| Year | : | 2005 |
| Price | : | P.O.A. |
| Description | : | |
|
SWING OVER BED 21.6" MAXIMUM MACHINING DIAMETER 10" CHUCK SIZE - MAIN SPINDLE 6" CHUCK SIZE - SUB-SPINDLE 5" SWING OVER CROSS SLIDE 13.8" MAXIMUM TURNING LENGTH 20.8" BAR CAPACITY 1.5" SPINDLE SPEED - MAIN SPINDLE 6,000 RPM SPINDLE SPEED - SUB-SPINDLE 5,000 RPM SPINDLE NOSE A2-6 TURRET - NUMBER OF TOOLS 12 INDEXING TIME (1 STEP / FULL) 0.3 SECONDS / 0.6 SECONDS LIVE TOOLING ROTATING SPEED 4,000 RPM X-AXIS TRAVEL 8.7" Z-AXIS TRAVEL 21.6" B-AXIS TRAVEL 29.5" RAPID TRAVEL (X, Z AXES) 1,417 IPM RAPID TRAVEL (B-AXIS) 1,181 IPM MAIN SPINDLE MOTOR 15/10 HP SUB SPINDLE MOTOR 5/3 HP ELECTRIC POWER SUPPLY 30 KVA APPROXIMATE FLOOR SAPCE 116" L X 65" W X 74" H APPROXIMATE WEIGHT 9,100 LBS. ELECTRICS 220 V/3/60 EQUIPPED WITH: FANUC OI-TB 4-AXIS CONTROL POLAR COORDINATE INTERPOLATION (SIMULATES Y-AXIS) TOOL TOUCH PROBE SUB-SPINDLE 12 POSITION LIVE TURRET FULL C-AXIS ON MAIN SPINDLE 5 DEGREE INDEXING ON SUB-SPINDLE WORK COUNTER 6.5" 3-JAW HYDRAULIC CHUCK ON MAIN SPINDLE 5.3" 3-JAW HYDRAULIC CHUCK ON SUB-SPINDLE 16 C COLLET NOSE PARTS CATRCHER COOLANT SYSTEM ALL AVAILABLE MANUALS 4,045 TOTAL ON HOURS 2,242 OPERATING HOURS 733 CUTTING HOURS | ||
| View all |
|
KIA (3) 15 LMS (1) CNC Lathes (382) Turning Centres (337) |
United States
