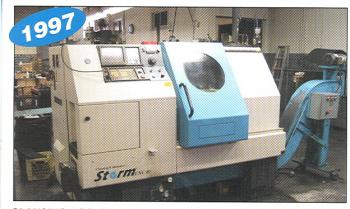

| Stockcode | : | 658313 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | CLAUSING/COLCHESTER |
| Model | : | STORM 80 |
| Year | : | 1997 |
| Price | : | P.O.A. |
| Description | : | |
|
Swing over bed covers ...................... 16.54" Swing over carriage cover .................. 11.02" Max. turning diameter ...................... 6.69" X-axis travel .............................. 6.5" Z-axis travel .............................. 13.78" Carriage inclination ....................... 60º (slant) Spindle center height from floor ........... 34.45" Spindle nose ............................... A2-5 Spindle bore ............................... 2.13" Bar capacity ............................... 1.65" Spindle front bearing internal diameter .... 3.15" Max. spindle speed ......................... 6000 RPM X and Z axis rapid traverse rate ........... 394/591 IPM Turret tool disc diameter .................. 13.39" Tooling type ............................... VDI 3425/30 Turning tool shank dimensions .............. .787" x .787" Max. boring bar diameter ................... 1.26" Max. travel below center line .............. .866" Cross-slide width .......................... 8.39" Width over linear guide ways ............... 7.36" Bed width .................................. 11.97" EQUIPPED WITH: - GE Fanuc 21T-B CNC CONTROL w/RS232 Port - 6" 3-Jaw Hydraulic Chuck - 12 Station Turret - Programmable tailstock - Automatic chip conveyor - Flood coolant system - (26) Turret tool holders with misc. tooling - 15 HP Spindle Drive - 3/60/230 Volt electrics with transformers for 3/60/208 Volt input Condition: Excellent Approx. Weight: 5075 lbs
| ||
