| Stockcode | : | 658308 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

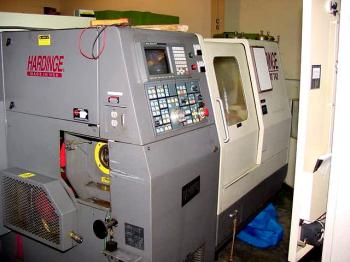

| Manufacturer | : | HARDINGE |
| Model | : | CONQUEST T-42 |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
SPINDLE SPINDLE CONFIGURATION (ANSI): A2-5", 16C ROUND COLLET (THROUGH CAPACITY): 1.625" AC DIGITAL DRIVE SYSTEM STANDARD: 15 HP TORQUE RATING: 51.5 FT-LB SPEED RANGE (1-RPM STEPS): 60 TO 6000 CARRIAGE AND CROSS SLIDE SWING DIAMETER OVER UPPER WAY COVER: 21.2" PRELOADED BALL SCREW DIAMETER: 1.259" X-AXIS TRAVEL (MAX.): 5.31" X-AXIS RAPID TRAVERSE RATE: 472 IPM Z-AXIS RAPID TRAVERSE RATE: 630 IPM Z-AXIS (DRILLING) THRUST (MAX.): 1,500 LBS VERTICAL TURRET LIVE TOOLING OPTION NO. OF STATIONS: 12 (6 LIVE OPT.) HORSEPOWER RATING (AT TOOL TIP): 2.4 HP TORQUE RATING (CONTINUOUS): 52 IN-LB SPEED RANGE (1-RPM STEPS): UP TO 4,000 SPINDLE ORIENT: C-AXIS CONTOURING(.001 DEGREE INCREMENTS) SUB-SPINDLE SPINDLE CONFIGURATION (ANSI): A2-5" ROUND 16C COLLET (THRU CAPACITY): 1.625" MAX. ALLOWABLE WEIGHT ON SPINDLE (INCLUDING WORKHOLDING DEVICE): 75 LB MAX. DISTANCE FROM SPINDLE FACE TO SPINDLE FACE: 13.270" MAX. SQUARE SHANK TOOL SIZE ON VERTICAL TURRET: ¾" MAX. ROUND SHANK TOOL SIZE ON VERTICAL TURRET: ¾" MAX. DEPTH OF WORKPIECE INSIDE SPINDLE (FROM SPINDLE FACE): 14" AC DRIVE SYSTEM (30 MIN RATING): 5 HP TORQUE RATING @ 1500 RPM BASE SPEED: 17.5 FT-LB SPEED RANGE (1 RPM STEPS): 80 TO 6000 RPM ELECTRICS: 220 VOLTS, 3 PH, 60 CYC EQUIPPED WITH: - GE FANUC 18T CNC CONTROL w/ CONVERSATIONAL PROGRAMMING & COLOR GRAPHICS - 6" 3-JAW HYDRAULIC CHUCK - LIVE TOOLING WITH C-AXIS - 2 X & 2 Z LIVE HOLDERS - PARTS CATCHER - SPEGO TURNAMIC 126 BARFEED - ALL AVAILABLE STANDARD TOOLHOLDERS - ALL AVAILABLE MANUALS | ||
