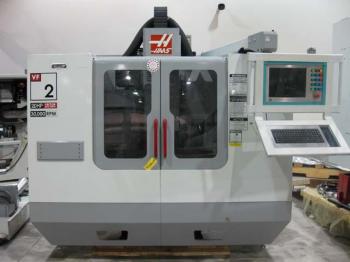

| Stockcode | : | 658260 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | HAAS |
| Model | : | VF-2D |
| Year | : | 2003 |
| Price | : | P.O.A. |
| Description | : | |
|
SPECIFICATIONS TRAVELS X-AXIS: 30" Y-AXIS: 16" Z-AXIS: 20" SPINDLE NOSE TO TABLE: 4" MIN. / 24" MAX. TABLE LENGTH: 36" WIDTH: 14" T-SLOT WIDTH: 5/8" T-SLOT CENTER DISTANCE: 4.92" NUMBER OF T-SLOTS: 3 MAX. WEIGHT ON TABLE: 3,000 LBS SPINDLE MAXIMUM RATING: 20 HP DUAL DYNAMIC DRIVE MAXIMUM SPEED: 30,000RPM MAXIMUM TORQUE: 75 FT.LB. @ 1,400 RPM DRIVE SYSTEM: DIRECT SPEED BELT DRIVE TAPER: BT #30 BEARING LUBRICATION: AIR/OIL INJECTION COOLING: LIQUID COOLED FEEDRATES RAPIDS X, Y, Z-AXIS: 1,000 IPM MAXIMUM CUTTING: 650 IPM TOOLCHANGER CAPACITY: 20 MAX. TOOL DIAMETER (FULL): 3.5" MAX. TOOL WEIGHT: 12 LBS TOOL-TO-TOOL (AVG.): 4.2 SEC. CHIP-TO-CHIP (AVG.): 4.5 SEC. GENERAL AIR REQUIRED: 4 SCFM, 100 PSI COOLANT CAPACITY: 55 GAL. POWER REQUIRED: 14 KVA 200-250 VAC @50 A 3 PH, 50-60 HZ MACHINE WEIGHT: 7,300 LBS ELECTRICS: 230V, 3 PH, 60 CYCLE EQUIPPED WITH CREATIVE EVOLUTION CNC CONTROL ASSORTED BT30 TOOLHOLDERS VACUUM SYSTEM COOLANT TANK WITH PUMP 8MB EXTENDED MEMORY QUICK CODE MACHINE WAS SPECIAL ORDERED TO MILL ELECTRODES.......... .EXCELLENT CONDITION
| ||
