| Stockcode | : | 658205 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

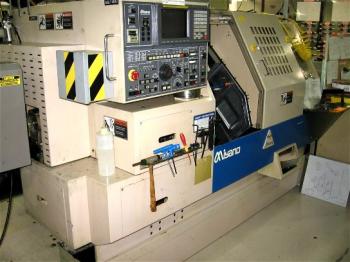

| Manufacturer | : | MIYANO |
| Model | : | BNE-46S |
| Year | : | 1997 |
| Price | : | P.O.A. |
| Description | : | |
|
CNC CONTROL FANUC 18-T MAX. O.D. 2" MAX. LENGTH 3" MAX SWING 20" UPPER/17.750 LOWER CHUCK SIZE 4" SUB-SPINDLE COLLET CAPACITY 1-3/4" MAIN/1" SUB SPINDLE NOSE (MAIN & SUB) FLAT SPINDLE SPEEDS (MAIN) 40 TO 4000 RPM SPINDLE SPEEDS (SUB) 170 TO 5000 RPM SPINDLE MOTOR 15 HP MAIN/5 HP SUB TURRET POSITION (BI-DIRECTIONAL) 12 UPPER (6) LIVE/10 LOWER TURRET INDEX TIME .05 SEC./POS MAX SLIDE STROKE X-AXIS 4.7" UPPER/3.35" LOWER MAX SLIDE STROKE Z-AXIS 11" UPPER/3.74" LOWER RAPID RATES 472 IPM UPPER/378 IPM LOWER MACHINE WEIGHT 12,300 LBS MACHINE DIMENSIONS 67"W X 70"H X 102"L EQUIPPED WITH (MUST BE VARIFIED WHEN RECEIVED IN WAREHOUSE) LNS QUICK LOAD BAR FEEDER COLLET CHUCK SYSTEM, HARDINGE S20 PAD TYPE (MAIN) COLLET CHUCK SYSTEM, B & S 21SC (SUB) CHIP CONVEYOR SPINDLE ORIENTATION ON MAIN AND SUB SPINDLES TOTAL AND PRESET COUNTER MACHINE LIGHT | ||
| View all |
|
MIYANO (2) BNE-46S (1) CNC Lathes (382) Turning Centres (337) |
United States
