| Stockcode | : | 658199 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

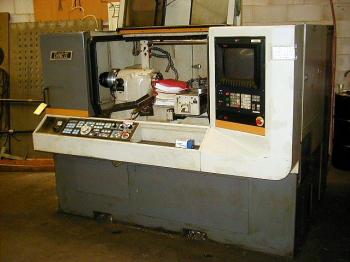

| Manufacturer | : | HARDINGE |
| Model | : | CHNC-II |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|
SPECIFICATIONS: SPINDLE SPINDLE CONFIGURATION: ANSI A2-5" HOLE THROUGH SPINDLE: 1-7/8" 16C COLLET CAPACITY: 1-5/8" SPINDLE SPEED RANGE (1-RPM STEPS): 50 TO 5000 RPM AC SPINDLE DRIVE (100% POWER RATING): 7.4 HP AC SPINDLE DRIVE (135% POWER RATING): 10 HP AC SPINDLE DRIVE (162% POWER RATING): 12 HP CAPACITY MAXIMUM SWING OVER BED: 14" MAXIMUM THREADING DIAMETER: 8" MAXIMUM TURNING DIAMETER: 8" MAXIMUM FIXTURE DIAMETER: 9" MAXIMUM ALLOWABLE WEIGHT ON SPINDLE (INCLUDING WORKHOLDING DEVICE): 75 LB TURRET NUMBER OF STATIONS: 8 SQUARE TOOL SIZE (STANDARD): 3/8" ROUND TOOL DIAMETER (STANDARD): UP TO 5/8" MAXIMUM X-AXIS TRAVEL: 4-1/2" MAXIMUM Z-AXIS TRAVEL: 12" MAXIMUM X AND Z AXIS FEEDRATE: 200 IPM MAXIMUM DISTANCE FROM TURRET FACE TO SPINDLE: 12-1/2" INDEXING TIME (STATION 1 TO 8): 2 SECONDS INDEXING TIME (STATION-TO-STATION): 1 SECOND MISCELLANEOUS MINIMUM PROGRAMMABLE RESOLUTION: 0.000010" MINIMUM TOOL OFFSET CAPABILITY: 0.000010" COMPRESSED AIR REQUIREMENT: 70 MIN. TO 90 MAX. PSI COOLANT SUMP CAPACITY: 30 U.S. GAL APPROX. SKIDDED WEIGHT: 5,000 LBS MACHINE DIMENSIONS (LENGTH): 91-1/2" DIMENSIONS W/CHIP REMOVAL SYSTEM: 126-1/2" L X 61-1/2" D X 64-1/2" H HEIGHT WITH GUARD DOOR RAISED: 89-3/4" ELECTRICS: 460 VOLTS, 3 PH, 60 CYC GENERAL NUMERIC 10TF CNC CONTROL FEATURES: DATA INPUT/OUTPUT INCH/METRIC DATA SELECTION ALPHA-NUMERIC KEYBOARD FOR MDI (MANUAL DATA INPUT), TOOL DATA CHANGES, AND PART PROGRAM EDITING RS-232-C SERIAL INTERFACE PROGRAMMING FUNCTIONS SYMBOLIC FAPT TURN CONVERSATIONAL PROGRAMMING WITH COLOR GRAPHIC DISPLAY CONSTANT SURFACE SPEED PROGRAMMING DIRECT RPM PROGRAMMING IPM/IPR (MMPM/MMPR) PROGRAMMING ABSOLUTE/INCREMENTAL PROGRAMMING DIAMETER PROGRAMMING DECIMAL POINT PROGRAMMING TOOL NOSE RADIUS COMPENSATION PROGRAM SEARCH/SEQUENCE NUMBER SEARCH HARDINGE CUSTOM MACRO CYCLES STANDARD LEAD THREADING WORK COORDINATE SYSTEM (PART POSITION OFFSET) OPERATION SPINDLE SPEED RANGE (50 TO 5000 RPM) 200 IPM (5 MPG) X- AND Z-AXIS TRAVERSE RATE MANUAL PULSE GENERATOR (MPG) HANDWHEEL TOOL DATA OFFSETS-32 PAIR/AXIS TOOL POSITION OFFSETS-32 PAIR/AXIS SPINDLE JOG MISCELLANEOUS STORED PITCH ERROR COMPENSATION DRY RUN MACHINE LOCK (PROGRAM TEST MODE) 14-INCH, COLOR CRT FOR GRAPHIC DISPLAY-GRAPHIC TOOLPATH SIMULATION WITH DATA DISPLAY IN ENGLISH TEXT SPINDLE LOAD METER REVERSAL ERROR COMPENSATION (X-AND Z-AXIS) HIGH-ACCURACY ENCODER FEEDBACK SYSTEM SOFTWARE OVERTRAVEL LIMITS SYSTEM TEST AND DIAGNOSTICS OPERATOR MESSAGES EQUIPPED WITH: GN 10TF CONTROL WITH FAPT PROGRAMMING | ||
