| Stockcode | : | 658198 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | HARDINGE |

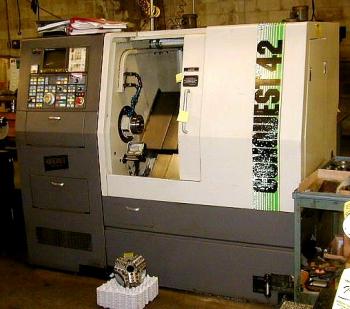

| Model | : | CONQUEST 42 |
| Year | : | 1992 |
| Price | : | P.O.A. |
| Description | : | |
|
SPINDLE CONFIGURATION ................ A2-5" HOLE THRU SPINDLE .................... 1-7/8" ROUND 16C COLLET CAPACITY ............ 1-5/8" AC DIGITAL SPINDLE DRIVE SYSTEM ...... 10 HP (30min rating) SPINDLE SPEED RANGE .................. 50 TO 5,000 RPM MAX. SWING OVER UPPER WAY COVER ...... 19-1/2" MAX. SWING OVER LOWER WAY COVER ...... 14-1/2" SQUARE SHANK TOOL SIZE ............... 3/4" ROUND SHANK TOOL SIZE ................ 1-1/8" RAPID TRAVERSE X/Z AXES .............. 472/630 IPM MAX. X-AXIS TRAVEL ................... 5-7/16" MAX. Z-AXIS TRAVEL ................... 13-41/64" ROTARY TOOL SPEED .................... UP TO 4,000RPM TAILSTOCK TAPER ...................... MT #3 TAILSTOCK TRAVEL ..................... 11-1/2" DISTANCE BETWEEN CENTERS ............. 13-13/16" APPROX. WEIGHT ....................... 9,000 LBS APPROX. DIMENSIONS ................... 86"x 54"x 68" EQUIPPED WITH: - FANUC 0T CNC CONTROL - C-AXIS - HYDRAULIC COLLET CLOSER - 3-JAW HYDRAULIC CHUCK - PARTS CATCHER - 10 POSITION TURRET WITH 5 LIVE STATIONS - TAILSTOCK - HARDINGE HAR-MATIC BARFEED - 7 LIVE TOOLHOLDERS - ALL AVAILABLE STANDARD TOOLHOLDERS - ALL AVAILABLE MANUALS ** 34,837 POWER ON HOURS ** | ||
