| Stockcode | : | 658196 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

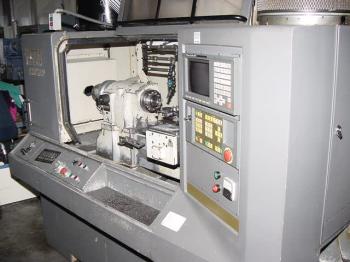

| Manufacturer | : | HARDINGE |
| Model | : | CHNC-IIISP |
| Year | : | 1997 |
| Price | : | P.O.A. |
| Description | : | |
|
(SUPER PRECISION) SPECIFICATIONS: SPINDLE: SPINDLE CONFIGURATION (ANSI)............. A2-5", 16C ROUND COLLET (THRU CAPACITY)............. 1.625" HANG WEIGHT W/WORKINGHOLDING DEVICE...... 75 LBS. (MAX.) COLLET CLOSER STROKE..................... 1/2" TURNING DIAMETER......................... 8" (MAX.) THREADING DIAMETER....................... 8" (MAX.) FIXTURE DIAMETER......................... 9" (MAX.) AC DIGITAL DRIVE SYSTEM: (15 MINUTE RATINGS USED FOR POWER AND TORQUE SPECIFICATIONS) (BASE SPEED TORQUE RATINGS 1250 RPM) STANDARD................................. 10 HP TORQUE RATING............................ 42 FT. LB. SPEED RANGE (1 RPM STEPS)................ 50 TO 5000 TOP PLATE AND TOOLING: NUMBER OF TOOL POSITIONS (STANDARD)...... 8 AVAILABLE............................... 4 X-AXIS TRAVEL............................ 4.5" MAX. Z-AXIS TRAVEL............................ 12.0" MAX. X-AXIS TRAVERSE RATE..................... 400 IPM (MAX.) Z-AXIS TRAVERSE RATE..................... 400 IPM (MAX.) DISTANCE FROM SPINDLE TO TOP PLATE FACE.. 12.5" (MAX) INDEXING TIME (STATION 1 TO 8)........... 2 SECONDS STATION TO STATION (UNLOCK, INDEX, RELOCK)............................... 1 SECOND TURRET INDEXING REPEATABILITY............ .000010" AXIS REPEATABILITY (OVERALL)............. .000050" SWING DIAMETER OVER BED/WAY COVER (MAX).. 14" PARTS REMOVAL SYSTEM: WORKPIECE DIAMETER X LENGTH (MAX.)....... 2.75" MISCELLANEOUS: COMPRESSED AIR REQUIREMENT............... 70 TO 90 PSI 5 TO 6 SCFM RECOMMENDED AMBIENT OPERATING: TEMPERATURE.............................. 32 5O 104 DEG. F 0 TO 40 DEG. C COOLANT TANK: CAPACITY................................ 30 US GALLONS COOLANT FLOW RATE....................... 6 TO 8 GPM APPROX. SKIDDED WEIGHT.................. 6,000 LBS. SPINDLE CENTERLINE HEIGHT............... 47.375" MACHINE DIMENSIONS: LENGTH................................. 92.75" DEPTH.................................. 70" HEIGHT................................. 64.50" WITH GUARD DOOR RAISED............... 90" ELECTRICS................................ 230V, 3PH, 60 CYC EQUIPPED WITH: - FANUC 18T CONTROL - HARDINGE HARMATIC BARFEED 6' | ||
