| Stockcode | : | 649041 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

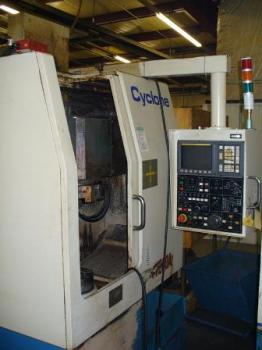

| Manufacturer | : | YOU-JI-CYCLONE |
| Model | : | YV-200A |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|
MAXIMUM SWING..........................................15.7"
STANDARD TURNING DIAMETER..............................8.66" MAXIMUM TURNING DIAMETER...............................8.66" MAXIMUM CROSS TRAVEL (X AXIS)..........................-5.5" + 6.3" MAXIMUM LONGITUDINAL TRAVEL (Y AXIS)...................15.7" MAXIMUM CUTTING HEIGHT.................................7.9" SPINDLE MOTOR..........................................15 HP SPINDLE NOSE...........................................A2-6 SPINDLE RPM............................................0-4500 SPINDLE BEARING DIAMETER...............................3.15" SPINDLE INSIDE TAPER...................................MT # 7 HYDRAULIC CHUCK........................................8" 3 JAW TURRET TOOLPOSITIONS...................................8 TURRET TYPE............................................HYDRAULIC TOOL MOUNTING..........................................BLOCK TYPE O.D. TOOL SHANK SIZE...................................1" I.D. TOOL SHANK SIZE...................................1.25" INDEX TIME.............................................0.5 SECONDS Z AXIS BALLSCREW DIAMETER..............................1.57" X AXIS BALLSCREW DIAMETER..............................1.3" X / Z SERVO MOTOR HP...................................1.33 / 2.8 RAPID TRAVERES RATE X / Z..............................472 / 944 IPM CUTTING FEED RATE......................................0.01 - 315 IPM POSITIONING ACCURACY WHEN NEW..........................+/- .00012" FULL STROKE REPEATABILITY WHEN NEW.................................+/- .00008" COOLANT TANK CAPACITY..................................25 GALLONS COOLANT PUMP MOTOR.....................................0.75 HP MACHINE WEIGHT.........................................6,600 LBS MACHINE HYDRAULIC PUMP MOTOR...........................3 HP EQUIPPED WITH THE FOLLOWING: FANUC OT CNC CONTROL CHIP CONVEYOR SPINDLE ORIENTATION 3 JAW 8" HYDRAULIC CHUCK COOLANT SYSTEM CONSTANT SURFACE SPEED X AXIS RADIUS/DIAMTER PROGRAMMING | ||
