| Stockcode | : | 649031 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | DAEWOO |

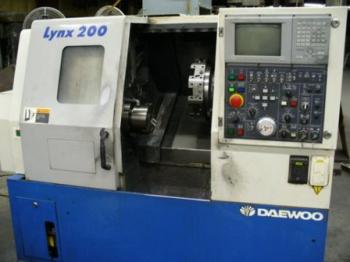

| Model | : | LYNX 200A |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
SWING OVER BED: 18.11"
SWING OVER SADDLE: 13.7" MAXIMUM TURNING DIAMETER: 11.0" (6.5 RECOMMENDED) MAXIMUM TURNING LENGTH: 11.81" BAR CAPACITY: 1.77" TRAVEL X-AXIS TRAVEL: 6.3" (5.51 + .79) Z-AXIS TRAVEL: 13" SPINDLE CHUCK DIAMETER: 6.5" SPINDLE SPEED: 5000 RPM SPINDLE NOSE: A2 #5 ASA SPINDLE BORE DIAMETER: 2.09" SPINDLE BEARING DIAMETER (FRONT): 3.54" TURRET NUMBER OF TOOL STATIONS: 10 OD TOOL SIZE: 1.0" x 1.0" BORING BAR DIAMETER: 1.5" INDEXING TIME (1ST SWIVEL): .12 SEC FEEDRATE RAPID TRAVERSE (X/Z): 790/945 IPM CUTTING FEED (X, Z): 19.7"/REV MOTOR SPINDLE (30 MIN): 10 HP FEED MOTOR (X/Z): 1.9/1.9 HP COOLANT PUMP: 1.2 HP ELECTRICAL POWER SUPPLY: 19 KVA ELECTRICS: 220 VOLTS, 3 PH, 60 CYC MACHINE SIZE HEIGHT: 61" FLOOR SPACE: 64" X 63" WEIGHT, APPROX.: 7,030 LBS Equipped With: Mitsubish M50L Control No Chip Conveyor | ||
