| Stockcode | : | 676334 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |
| Manufacturer | : | MAZAK |

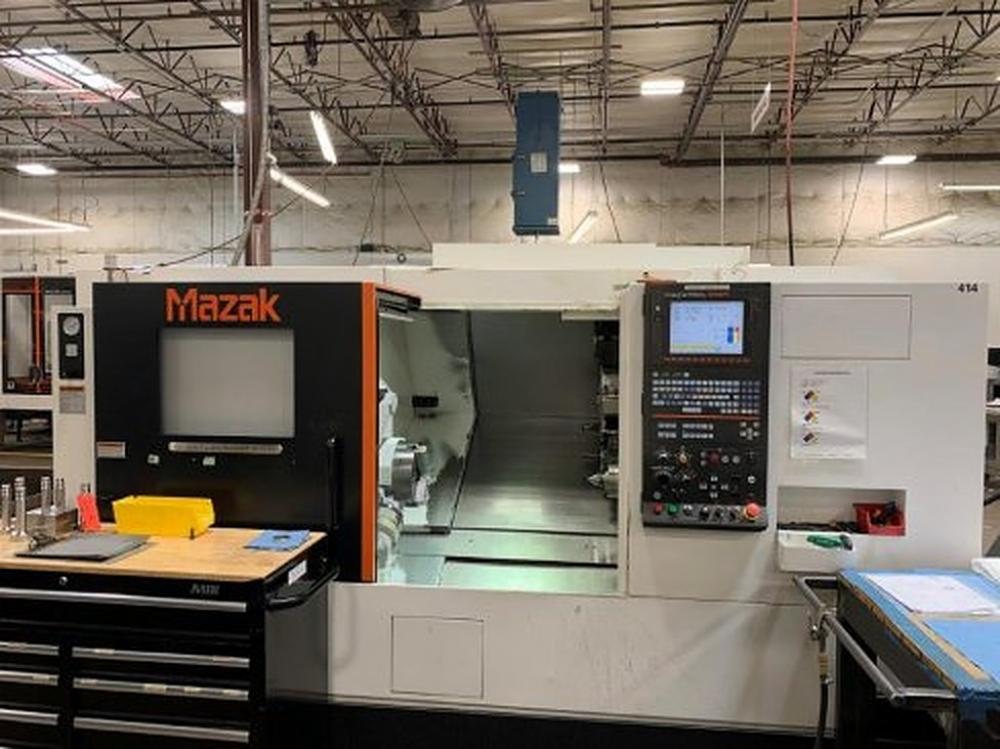

| Model | : | QUICK TURN SMART 300M |
| Year | : | 2012 |
| Price | : | P.O.A. |
| Description | : | |
|
Maximum Swing ........................... 28.35"
Swing Over Slide ........................ 16.7" Maximum Machining Diameter .............. 16.5" Maximum Machining Length ................ 25.725" Bar Work Capacity ....................... 3.15" X-Axis Travel ........................... 9.375" Z-Axis Travel ........................... 27.875" Spindle Speeds .......................... 4000 Rpm Spindle Nose ............................ JIS- A2-8 Chuck Size .............................. 10" 3-Jaw Spindle Bore ............................ 3.58" Turret Type ............................. 12 Position Drum Number Of Tools ......................... 12 Tools Tool Shank Height ....................... 1" Boring Bar Shank Diameter ............... 2" Turret Indexing Time .................... .027 Sec. Rotary Tool Spindle Speed ............... 4000 Rpm C-axis Indexing ......................... 0.0001 degree Feedrate Rapid Traverse Rate X/Z ........ 1181/1299 IPM Rapid Traverse Rate C-axis .............. 555 Rpm Tailstock Stroke ........................ 25.375" Spindle Motor ........................... 35 HP Power Requirement ....................... 43.1 KVA Air Source Pressure ..................... 73 PSI Coolant Tank Capacity ................... 59 Gal. Machine Size ............................ 120" x 75" x 75" Machine Weight .......................... 13,400 Lb Equipped With: - Mazatrol Smart CNC Control - Tooleye - 10" 3-Jaw Hydraulic Chuck - 12 Position Turret - Full C-Axis - Tailstock - Chip Conveyor - All Available Static and Live Too Holders | ||
