| Stockcode | : | 675015 |
| Type | : | CNC Lathes |
| Subtype | : | Turning Centres |

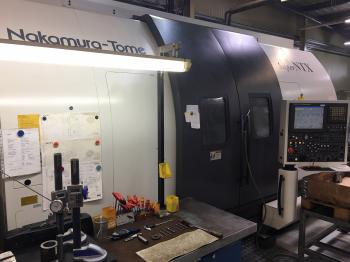

| Manufacturer | : | NAKAMURA |
| Model | : | SUPER NTX-S |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
S/No. V300901
Fanuc 16i-TB Luckbei-Dialog System Supercap Max. turning diameter – Upper turret 390 mm – Lower turret 300 mm Max. turning length 1.100 mm Max. bar working capacity 65 mm Milling spindle AC 18.5/11 kW Milling spindle Max. speed 12.000 rpm Capto C6 Servo controlled B-Axis, 230° Y-Axis 160 mm ATC with 40 tools Main and sub spindle AC 22/18,5 kW Main and sub spindle max. speed 4.500 rpm 12/24-station turret, all stations for driven tools Max. speed driven tools 3.600 rpm 2 off. 3-jawchuck 210 mm, Schunk Coolant tank 250 Liter High pressure pumps Swarf conveyor 1 set of toolholders for lower turret – 9 static, 3 driven weight 19.000 kg CE-mark | ||
| View all |
|
NAKAMURA (13) SUPER NTX-S (1) CNC Lathes (382) Turning Centres (337) |
Germany
