| Stockcode | : | 673727 |
| Type | : | Grinding |
| Subtype | : | Universal |

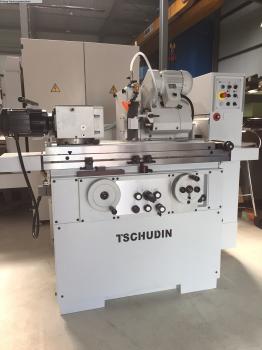

| Manufacturer | : | TSCHUDIN |
| Model | : | HTG 310 |
| Year | : | 1986 |
| Price | : | P.O.A. |
| Description | : | |
|
grinding diameter 200 mm grinding length 340 mm centre height 100 mm grinding wheel diameter 350 mm grinding wheel width 50 mm bore 127 mm work piece spindle speed 50-500, stufenlos 1/min workpiece spindle - bore 35 mm grinding head swivelling 360 ° grinding spindle head - swivable 12 + - ° longitudinal feed of the table 340 mm table speeds 0-5 m/min tailstock quill taper MT 3 MK quill travel 20 mm centre distance 340 mm total power requirement 4,5 kW weight of the machine ca. 1,7 t dimensions of the machine ca. 2,02 x 1,2 x 1,45 m Additional information overhauled with Tschudin geometrical protocoll. Internal grinding device is not in the offer included. Extra costs 5.000 Euro. | ||
