| Stockcode | : | 673414 |
| Type | : | Forming |
| Subtype | : | Miscellaneous |
| Manufacturer | : | VERSON |
| Model | : | 10800R-36-120 |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|

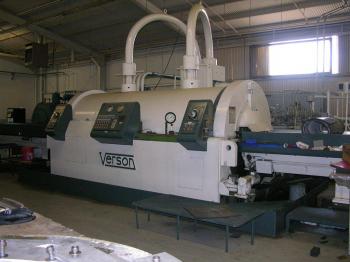

Verson Wheelon Fluid Cell Press 36 x 120
Used Verson Wheelon Direct Acting Hydraulic Forming Press Catalog Specifications Capacity: 10600 Tons Forming pressure: Variable, selectable to 7,500 psi (maximum) Press tables (2): Tray Size @ Top 36” x 144” Tray Area @ 4 ˝ ” Depth 30.25” x 134.75” Capable to 6” Depth with 26” x 128” area Tables each actuated by a hydraulic cylinder Pump & Motor Data: Main Pressure150 HP & Supercharge Pressure7 ˝ HP Accumulator Charge Pump 30 HP Pilot Pressure Pump 25 HP Vacuum Pump 7.5 HP Pad Vacuum Pump 1 HP & Cooler Pump Cano-Micro Clean Oil Filter: 1/4 hp Pumps / Power Unit mounted upon 1800 gal. Oil Reservoir Controls: Central Master Control Station for all press functions. (2) Operator Control Stations for selecting forming pressure, tray in/out, evacuation and emergency stop, located at each end of Press Barrel Selectable “Manual” or “Automatic” press cycle modes of operation Equipped with: Pressure Accumulator and Pressure Intensifier Vacuum Pad Hold Up System Main Electrical Panel Spare parts include one used wear pad & fluid cell Utilities: 480 V, 60 cycle; factory air (100 psi), water for oil cooler May be installed on factory floor without pit or special foundation. | ||
