| Stockcode | : | 672671 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |

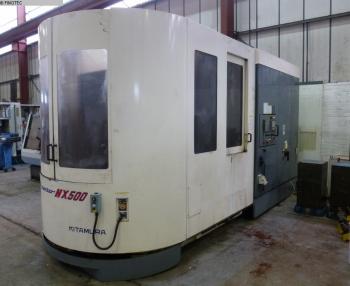

| Manufacturer | : | KITAMURA |
| Model | : | HX 500 I |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 863 mm
y-travel 711 mm z-travel 660 mm control Fanuc 16IM turning speeds 12000 1/min spindle drive 30 kW Number of tool station 60 BT 50 max. tool length 400 mm max. tool weight 12 kg tool changing time 1,3 sec numbers of pallets 2 Pallet dimension 500x500 360000° mm working diameter max.730 mm table load 0,5 t rapid travel x/y/z 50 m/min total power requirement 50 kVA weight of the machine ca. 14 t Accessories Chip conveyor Additional information WITH 4 AXIS 360000° AND FANUC CONTROL | ||
| View all |
|
KITAMURA (11) HX 500 I (1) CNC Machining Centres (475) Horizontal (148) |
France
