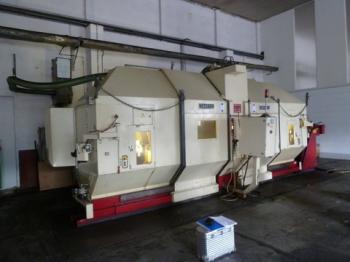

| Stockcode | : | 672109 |
| Type | : | CNC Lathes |
| Subtype | : | Vertical Turning |
| Manufacturer | : | HESSAPP |
| Model | : | DV-92 |
| Year | : | 1990 |
| Price | : | P.O.A. |
| Description | : | |
|
Control Siemens Sinumerik 3T
Swing diameter over the bed: 1000 mm Turning diameter: max. 900 mm Spindle nose to pallet: max. 880 mm Travels: X 680 mm Z 800 mm Feeds: X, Z 0.5 - 5000 mm/min. Rapids: X, Z 8000 mm/min. Spindle nose: left/right A-15 Spindle bearing diameter: left/right 228 mm Spindle drive motor rating: 60.5 KW Spindle speeds: 10 - 1400 rpm Gear steps: 2 Spindle torque: max. 4127 Nm Chuck diameter: left/right 800 mm Chuck type: Hydraulic Forkardt 3-jaw chucks Tool taper: ISO 60 Tool magazine positions: left/right 12 / 12 Machine weight: 22000 kg Machine dimensions: L x W x H mm Equipped with: 2 x Spindles; 1 x Moving column ram for pendulum machining; 2 x Tool magazines and automatic tool changers; 2 x 800 mm 3-jaw chucks FORKARDT; 2 x 800 mm 4-jaw manual chucks; Clamping stroke monitor internal/external; Chip conveyor; Large package of jaws and tooling; Condition: Very good mechanical condition. | ||
| View all |
|
HESSAPP (1) DV-92 (1) CNC Lathes (382) Vertical Turning (4) |
Germany
    |  |
