| Stockcode | : | 670406 |
| Type | : | Milling |
| Subtype | : | Toolroom |

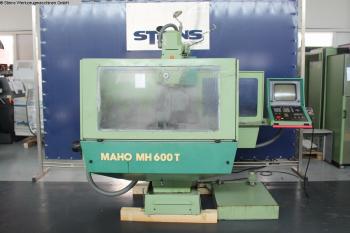

| Manufacturer | : | MAHO |
| Model | : | MH 600 T #505 |
| Year | : | 1991 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 600mm
y-travel 400mm z-travel 400mm control Heidenhain 332 Main spindle: turning speed range - main spindle 80 - 4.000min/-1 power capacity - main spindel 4,0kW tool taper ISO 40 stroke of quill vertical 80mm work table: table surface area 900 x 460mm number of T-slots 7 T-slot - width 14H7mm T-slot - distance 63mm max. table load 300kg feeds: feed speeds 0,1 - 2.000mm/min rapid traverse ( X / Y / Z ) 4 / 3 / 5m/min Feed force X / Y / Z : 3,7 / 3,7 / 8N measuring system resolution capability linear 0,001mm number of simltaneous controlled axis 2 total power requirement 16kVA weight of the machine ca. 2,3t dimensions of the machine ca. 4,0 x 3,5 x 2,0m Equipment Documents Coolantsystem hydraulic system Vice 1x Other information CNC - Tool Room Milling Machine Universal MAHO - MH 600 T - Operating-Hours in total: ca. 34.500h | ||
