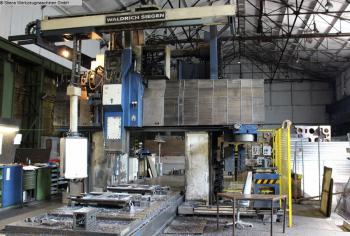

| Stockcode | : | 670401 |
| Type | : | Milling |
| Subtype | : | Double Column |
| Manufacturer | : | WALDRICH SIEGEN |
| Model | : | V / H 37 (1S) |
| Year | : | 1982 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 9.400mm
y-travel 3.200mm z-travel max. 1.500mm control Siemens 840 D distance between columns 2.000mm Max. workpiece - width 1.950mm Max. workpiece - hight 1.600mm max. workpiece weight 160 ( 80 + 80 )t Main spindle: turning speed range - main spindle 10 - 1.765min/-1 transmission ratio 3 power capacity - main spindel 37kW max. Torque 3.500Nm diameter of quill 200mm spindle bearing diameter 125mm tool taper SK 50 b-axis 4 x 90° work table: no. of tables 2 table surface area 2x 4.000 x 1.750mm T-slots 2x 12 x 26,98mm max. table load 20t/mē Tool-Presetter: number of toolpositions 60pos. max. tool diameter 155mm max. tool-dia with free toolbox 330mm max. tool weight 55kg feeds: rapid traverse 10m/min Feed force 40kN total power requirement -kW weight of the machine ca. -t dimensions of the machine ca. 24,0 x 7,0 x 7,0m Equipment Documents Chip conveyor Coolantsystem ATC - 60 pos. Other information CNC - Planer Type Milling MC - Double Column WALDRICH SIEGEN - Modernized / generally overhauld in 2001 - ATTENTION: Tool-Changer exists, but actual not in operation | ||
