| Stockcode | : | 670400 |
| Type | : | Milling |
| Subtype | : | Double Column |
| Manufacturer | : | JOBS |

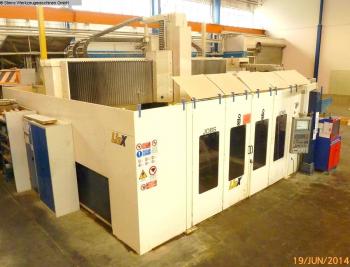

| Model | : | LINX 35 COMPACT |
| Year | : | 2010 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 4.000mm
y-travel 3.650mm z-travel 1.250mm control TNC 530 M Heidenhain Main spindle: tool taper HSK 63A / HSK 100A turning speed range - main spindle HSK 63A: 27.000min/-1 turning speed range - main spindle HSK 100A: 15.000min/-1 power capacity - main spindel HSK 63A: 41 / 36kW power capacity - main spindel HSK 100A: 44 / 35kW max. Torque HSK 63A: 39 / 34Nm max. Torque HSK 100A: 200 / 160Nm rotatable +/- 200° swivellable +95 / -120° resolution 0,001° work table: table surface area 4.000 x 3.000mm max. table load 5t/mē => 60t tool magazin: number of toolpositions 2x 32pos. Built-up pro Seite / each Side Tooling 16x HSK 63A Tooling 16x HSK 100A feeds: rapid traverse ( X / Y / Z ) 70 / 60 / 50m/min total power requirement 180kVA weight of the machine ca. 45t dimensions of the machine ca. -m Equipment Documents Chip conveyor 2 pos. Coolantsystem high pressure coolant 15 / 50 bar through spindle coolant 4th / 5th Axis hydraulic system spindle oil cooler tool setting Renishaw paper band filter Signal-Light Spindle magazine 2 pos. elektr. hand wheel Other information CNC-5-Axis Travel Column Milling Machine JOBS - LinX 35 Compact - 2 Spindles: HSK 63A / HSK 100A - WITHOUT additional Working-Table ! | ||
| View all |
|
JOBS (2) LINX 35 COMPACT (1) Milling (341) Double Column (5) |
Germany
