| Stockcode | : | 670396 |
| Type | : | Milling |
| Subtype | : | Universal |

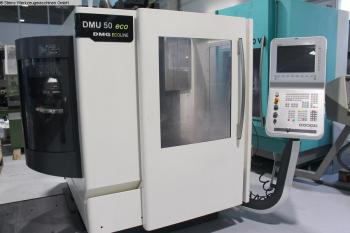

| Manufacturer | : | DECKEL MAHO |
| Model | : | DMU 50 ECO |
| Year | : | 2010 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 500mm
y-travel 450mm z-travel 400mm control Siemens 810D ShopMill Main spindle: turning speed range - main spindle 20 - 8.000min/-1 power capacity - main spindel 13 / 9kW tool taper SK 40 DIN 69871 max. Torque 83Nm NC-Rotary table: table surface area 630 x 500mm max. table load 200kg Swivel range -5 / +110° rotation range 0,001° T-slots 7x 14 x 63mm tool magazin: number of toolpositions 16pos. max. tool weight 6kg max. tool diameter 80mm max. tool-dia with free toolbox 130mm max. workpiece length 300mm feeds: rapid traverse 12m/min Feed force 4,5kN feed speeds 1 - 12.000mm/min total power requirement 18kW weight of the machine ca. 5,0t dimensions of the machine ca. 4,5 x 3,5 x 2,3m Equipment Documents Chip conveyor Signal-Light tool setting Renishaw Coolantsystem elektr. hand wheel Other information CNC - Milling Machine Universal DMG - DMU 50 eco - 5 Axis - swivable rotary table | ||
| View all |
|
DECKEL MAHO (25) DMU 50 ECO (1) Milling (341) Universal (160) |
Germany
