| Stockcode | : | 670392 |
| Type | : | Milling |
| Subtype | : | Universal |
| Manufacturer | : | CHIRON |

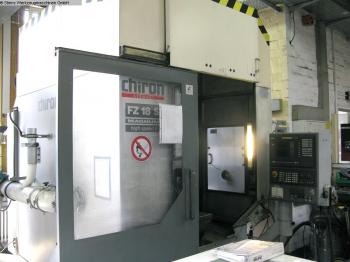

| Model | : | FZ 18 S MAGNUM HIGHSPEED II |
| Year | : | 1996 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 750mm
y-travel 400mm z-travel 425mm control 840 D Siemens distance spindle center to column 435mm distance spindle nose and table 190 - 615mm Main spindle: turning speed range - main spindle 20 - 15.000min/-1 power capacity - main spindel 14kW max. Torque 90Nm spindle diameter in front bearing 70mm tool taper SK 40 work table: table surface area 1.150 x 460mm max. table load 1.200kg number of T-slots 2 + 1 T-slots 2x 18H12 T-slots 1x 18H8 Tool-Presetter: number of toolpositions 20pos. tool taper SK 40 DIN 69871/-72 max. tool diameter 65mm max. tool-dia with free toolbox 180mm max. tool weight 5,0 (8,0)kg max. tool length 220mm change-time tool to tool 0,9sec change-time chip to chip 2,4sec feeds: rapid traverse ( X / Y / Z ) 30m/min Accelaration 4,5m/sē Feed force X/Y/Z: 5 / 5 / 10kN total power requirement ca. 35kVA weight of the machine ca. 8,0t dimensions of the machine ca. 4,0 x 3,0 x 3,2m Equipment Documents Automatic Tool Changer 20 pos. elektr. hand wheel Other information CNC - Traveling Column Milling Machine Vertical CHIRON - FZ 18 S Magnum HighSpeed II - machine has been regulary checked - new spindle in 2001 | ||
