| Stockcode | : | 670390 |
| Type | : | Milling |
| Subtype | : | Universal |
| Manufacturer | : | MATEC |
| Model | : | 30 L |
| Year | : | 1995 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 2000mm

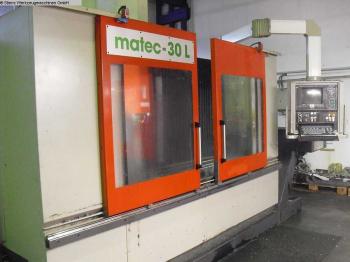

y-travel 480mm z-travel 450mm control CC 220 MBosch table width 500mm distance spindle nose and table 200 - 600mm number of T-slots 3 x 18H10 Main spindle turning speed range - main spindle 20 - 9.000U/min power capacity - main spindel 16kW max. Torque 100Nm tool taper SK 40 spindle diameter 70mm tension force 12kN tool magazin: tools in tool magazin 36 max. tool diameter 70mm max. tool-dia with free toolbox 130mm max. tool length 300mm change-time chip to chip 4,5sec change-time tool to tool 2,5sec feeds feed 30m/min rapid traverse 30m/min feed power X/Y: 6.600N feed power Z: 9.500N total power requirement 20kVA weight of the machine ca. 11t dimensions of the machine ca. 6,0 x 3,5 x 3,2m Equipment Documents Chip conveyor Coolantsystem interface 4. axis 4. axis HoffmannRW/NC 220 Other information CNC - Travelling Column Milling Machine MATEC - 30 L - incl. 4.Axis HOFFMANN RW/NC 220 - all axis has been renewed in 2012 | ||
