| Stockcode | : | 670388 |
| Type | : | Milling |
| Subtype | : | Universal |

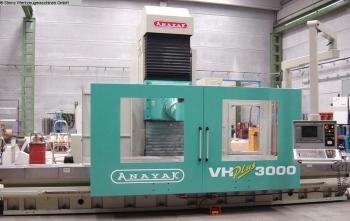

| Manufacturer | : | ANAYAK |
| Model | : | VH PLUS 3000 N |
| Year | : | 2001 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 3.000mm
y-travel 1.070mm z-travel 1.500mm control TNC 426 Heidenhain Main spindle: turning speed range - main spindle 60 - 4.000min/-1 power capacity - main spindel 18,5 / 22kW tool taper ISO 50 DIN 69871-B swivellable +180 / -175° resolution 1° rotatable x 2,5° work table: table surface area 3.200 x 1.100mm max. table load 6.000kg T-slots 9 x 22 x 120mm feeds: feed speeds 0,01 - 6.000mm/min rapid traverse x/y: 20 / z: 10m/min total power requirement ca. 50kVA weight of the machine ca. 25t dimensions of the machine ca. 10,0 x 6,0 x 4,0m Equipment Documents Chip conveyor Coolantsystem high pressure coolant 7 bar interface 4. axis spindle oil cooler hydraulic system Other information CNC - Bed Type Milling Machine ANAYAK - VH Plus 3000 N - Automatic Turning-/Swiveling-Head | ||
| View all |
|
ANAYAK (4) VH PLUS 3000 N (1) Milling (341) Universal (160) |
Germany
