| Stockcode | : | 670380 |
| Type | : | Lathes |
| Subtype | : | Automatic |
| Manufacturer | : | CITIZEN |

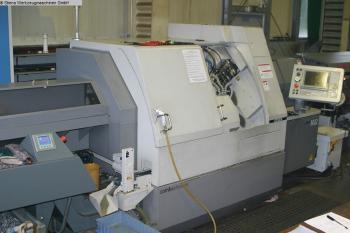

| Model | : | CINCOM M32 V |
| Year | : | 2010 |
| Price | : | P.O.A. |
| Description | : | |
|
turning length 320mm
control MitsubishiM6B Main spindle working diameter max. 32mm working lenght 320mm spindle passage 36mm turning speed range - stepless 200 ~ 8.000U/min C - Axis 0,001° drive capacity - spindle motor 5,5 / 3,7kW Subspindle working diameter max. 32mm turning speed range - stepless 200 ~ 7.000U/min C - Axis 0,001° drive capacity - spindle motor 2,2 / 1,5kW life tools vertikal tool holder 4. turning speed range - drilling 5.000U/min power capacity - driven tools 1kW Turret . turret (x-stations) 10 Indexing positions 20pos.. turning speed range - drilling 5.000U/min power capacity - driven tools 1,5kW worktool system turning tool - shaft cross cut 16 x 16 x130mm Tool holder, sleeve 25,4. Number of tools 5pos. Guide bush 28.001. Drill sleeve ER16 / 20. collets F37 rapid traverse 20m/min total power requirement 32kW weight of the machine ca. ca. 2,9t dimensions of the machine ca. 9,6 x 1,5 x 1,8m Equipment Documents bar feeder FMB Turbo 3-36 driven tools X: 3 / Z: 3(6 pos.) high pressure coolant 130bar parts catcher Signal-Light bar feeder interface Y-axis +/- 45 mm Chip conveyor Subspindle C-axis Other information Turning Automatic Lathe - Longitudinal CITIZEN - CinCom M32 V - incl. Bar Feeder FMB Turbo 3-36 - Operating-Hours: ca. 12.200h | ||
| View all |
|
CITIZEN (5) CINCOM M32 V (2) Lathes (281) Automatic (21) |
Germany
