| Stockcode | : | 670369 |
| Type | : | Lathes |
| Subtype | : | VTL |
| Manufacturer | : | DOERRIES SCHARMANN |
| Model | : | CONTUMAT VCE 2800/250 MC #2 |
| Year | : | 2008 |
| Price | : | P.O.A. |
| Description | : | |
|
faceplate diameter 2.500mm

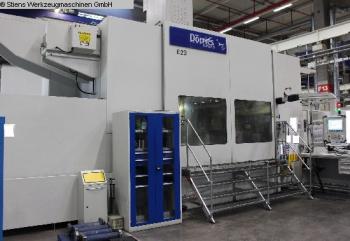

swing diameter 2.800mm turning height 1.800mm control Indramat MTX Bosch Rexroth Main spindle: turning speed range - main spindle 3.000min/-1 no. of turning speeds 2 power capacity - main spindel 37kW max. Torque 1.230Nm tool taper SK 50 / SK 40 / Capto C6 clamping capacity max. 25kN distance spindle /table max. 2.000mm spindle diameter in front bearing 100mm C-Axis 0,001° Number of revolutions C: 0,002 - 2,5rpm work table: table diameter 2.500mm max. table load 25.000kg center hole 250H7mm Number of revolutions max. 224rpm no. of turning speeds 2 power capacity - table 100kW max. Torque 44.900Nm cutting capacity max. 50.000N axis stroke: x-axis +/- 1.550mm z-axis 1.500mm worktool system shaft cross cut 250 x 250mm immersion diameter min. 340mm feeds: feed speeds X / Z: 0 - 18.000mm/min Feed force X / Z: 35kN tool magazin: 1x number of toolpositions ( x - x )pos. total power requirement > 120kW weight of the machine ca. 73t dimensions of the machine ca. 20,0 x 8,0 x 7,0m Other information CNC - Single Column - Vertical Turret Lathe DOERRIES SCHARMANN - Contumat VCE 2800/250 MC - pictures of a machine identical of construction - several machines available / New-Ins 2008/2009 | ||
