| Stockcode | : | 670366 |
| Type | : | Lathes |
| Subtype | : | VTL |
| Manufacturer | : | HANKOOK |
| Model | : | VTC 140 E / APC |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
faceplate diameter 1.400mm

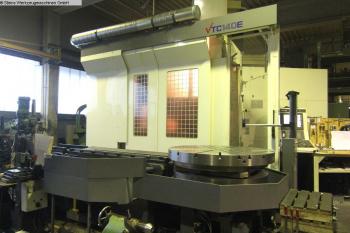

swing diameter 1.600mm turning height 1.200mm control Fanuc 31i Model A Tool-Head: Number of tools 1St. tool adaptor ISO 7/24 / No.50 Shank diameter 32 x 32mm turning speed range - milling 15 - 1.500U/min drive capacity - spindle motor 18,5 / 15kW work table: table diameter 1.400mm numbers of pallets 2 turning speed range 0,8 - 320U/min C-Axis 0,001° max. workpiece weight 8.000kg tool magazin: number of toolpositions 24 (12 + 12)pos. Number of driven toolspositions 12pos max. tool weight 50kg feeds: rapid traverse 12m/min total power requirement -kW weight of the machine ca. 20t dimensions of the machine ca. 7,0 x 5,0 x 5,0m Equipment Documents Chip conveyor Coolantsystem through spindle coolant 20bar pallet changer 2 pos. Tool Magazine 24 pos. Other information CNC - Vertical Turret Lathe HANKOOK - VTC 140 E / APC - 2pos. Pallet-Changer | ||
| View all |
|
HANKOOK (2) VTC 140 E / APC (1) Lathes (281) VTL (21) |
Germany
