| Stockcode | : | 670348 |
| Type | : | Grinding |
| Subtype | : | Cylindrical Universal |
| Manufacturer | : | KELLENBERGER |
| Model | : | RS-H 175/1000 CNC |
| Year | : | 1998 |
| Price | : | P.O.A. |
| Description | : | |
|
max. workpiece diameter 349mm

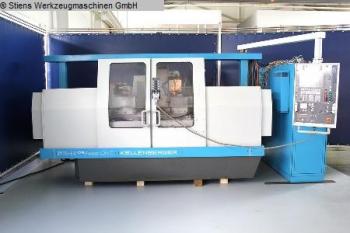

grinding length 1.000mm control KELCO 90 centre height 175mm Wheelhead slide / X-Axis . Travel 350mm speed 8m/min-1 Resolution 0,1µm table (Z-axis) . Travel 1.160mm speed 16m/min-1 swivellable 0 - 9° Resolution 0,2µm B - Axis . rotary speed max. rad. min-1 37,7min-1 Resolution 0,0000278° grinding spindle head . Grinding wheel Ø x width x bore 600 x 125 x 304,8mm peripheral speed 45m/sec turning speed range 1.450 / 1.750U/min workpiece spindle head: swivellable 120° turning speed range 5 ~ 500U/min tail stock Cone MORSE 4. quill travel 50mm weight of the machine ca. ~ 7,0t dimensions of the machine ca. 4,5 x 2,8 x 2,2m Other information Cylindrical Grinding Machine KELLENBERGER RS-H 175/1000 CNC | ||
