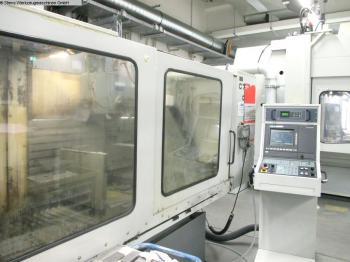

| Stockcode | : | 670344 |
| Type | : | Grinding |
| Subtype | : | Surface Horizontal Spindle |
| Manufacturer | : | JUNG |
| Model | : | C 740 CNC - E |
| Year | : | 1996 |
| Price | : | P.O.A. |
| Description | : | |
|
grinding length 800mm
grinding width 430mm control Sinumerik 840 C Siemens workpiece height 335mm distance spindle /table 160 - 735mm magnetic clamping plate, electical 700 x 400mm max. workpiece weight 800kg Main spindle turning speed range - grinding wheel 1.500 - 4.300U/min power capacity - grinding motor 15kW cutting speed 35m/sec grinding wheel size diameter 210 - 400mm width max. 50mm grinding wheel hole diameter 127mm Radial wear 95" X-Axis (Table motion) x-travel 880mm Reciprocal stroke at maximum table speed 800mm rapid traverse X-axis max. 40m/min Y-Axis (vertical motion) y-travel 510mm feed 5.000mm/min measuring system resolution capability 0.1µm z - axis z-travel 460mm feed 5.000mm/min measuring system resolution capability 0.1µm total power requirement 26kVA weight of the machine ca. 7,5t dimensions of the machine ca. 4,5 x 4,0 x 2,2m Equipment Documents Other information Surface Grinding Machine - Horizontal JUNG - C 740 CNC-E | ||
