| Stockcode | : | 670343 |
| Type | : | Grinding |
| Subtype | : | Surface Horizontal Spindle |
| Manufacturer | : | JUNG |
| Model | : | JC 500 CNC-A |
| Year | : | 1992 |
| Price | : | P.O.A. |
| Description | : | |
|
grinding length 600mm

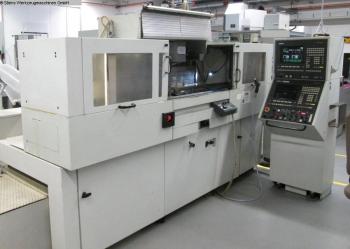

grinding width 220mm workpiece height 370mm control Sinumerik 820 GSiemens x-travel 600mm y-travel 400mm z-travel 220mm Distance between table surface and spindle center max. 500mm magnetic clamping plate table surface area 500 x 175mm table swivelling up to 30° max. table load 100kg feeds: feed in x - axis 1 - 24m/min feed in y - axis 2m/min feed range Z-direction 2m/min supplying value 0,001mm Grinding spindle turning speed range - grinding spindle 800 - 4.200U/min drive capacity - spindle motor 5kW grinding wheel size 250 x 25 x 51mm total power requirement 7,5kVA weight of the machine ca. 3,5t dimensions of the machine ca. 3,7 x 2,1 x 2,1m Equipment Documents Dressing device Other information CNC - Surface Grinding Machine JUNG - JC 500 CNC-A - ca. 29.000 Workinghours | ||
| View all |
|
JUNG (7) JC 500 CNC-A (1) Grinding (304) Surface Horizontal Spindle (85) |
Germany
