| Stockcode | : | 670342 |
| Type | : | Grinding |
| Subtype | : | Surface Horizontal Spindle |
| Manufacturer | : | STÖCKEL |
| Model | : | FD 30 / 10 NC |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|

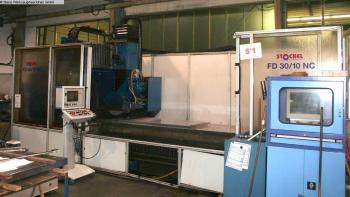

Surface Grinding Machine - Double Column
grinding length 3.000mm grinding width 1.000mm workpiece height 750mm control Stöckel NC Comfort Main spindle: driving power - grinding spindle 18,5kW spindle cone 75mm dimensions of grinding wheel 500 x 100 x 203mm adjustment 0,001mm distance spindle center to table 1.000mm table surface area 3.000 x 1.000mm longitudinal stroke 3.150mm feeds: feed speeds X: 28.000mm/min feed speeds Y: 3.000mm/min feed speeds Z: 3.000mm/min total power requirement 30kW weight of the machine ca. 19t dimensions of the machine ca. 9,0 x 5,0 x 3,0m Equipment Documents Magnet clamping plate 4 pos. 500 x 1.000mm magnetic separator for cooling water Other information CNC - Precision-Surfacegrinding Machine in Gantry-Construction STÖCKEL - FD 30 / 10 NC - starting up in 2002 - hydrostatic guidances | ||
| View all |
|
STÖCKEL (1) FD 30 / 10 NC (1) Grinding (304) Surface Horizontal Spindle (85) |
Germany
