| Stockcode | : | 670334 |
| Type | : | Gear |
| Subtype | : | Grinding |
| Manufacturer | : | GLEASON PFAUTER |
| Model | : | P 2000 G |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
max. wheel diameter 800 / 2.200mm

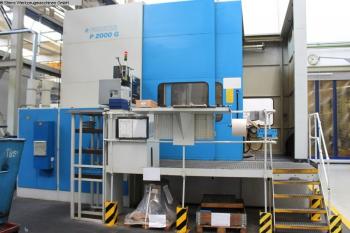

profile depth max. 55mm control Sinumerik 840 C Siemens Grinding spindle: turning speed range - grinding spindle 1.200 - 6.000U/min driving power - grinding spindle 20kW grinding spindel dia. 80mm Swivelling range of grinding head +/- 30° resolution 0,001° rotary table: table diameter 1.870mm table hole 600 x 875mm max. table load 20.000kg table rotation speed max. 3,5U/min working area: Distance Grindingwheel- / Workpieceaxis 200 - 1.420mm tooth width max. 550mm axial slide way max. 1.100mm max. swing diameter 2.700mm grinding wheel diameter max. 300mm grinding wheel width max. 55mm Dressing diameter min. 165mm dividing plate diameter 1.606mm feeds: feed speeds axial: 6.000mm/min feed speeds radial: 3.000mm/min total power requirement 80kVA weight of the machine ca. 37t dimensions of the machine ca. -m Equipment Documents Coolantsystem hydraulic system filtering unit Other information CNC - Gear Profile Grinding Machine GLEASON PFAUTER - P 2000 G - grinding of straight and tilted Internal- and Externalgears | ||
| View all |
|
GLEASON PFAUTER (1) P 2000 G (1) Gear (44) Grinding (5) |
Germany
