| Stockcode | : | 670325 |
| Type | : | Drilling |
| Subtype | : | Pillar |
| Manufacturer | : | ELHA |
| Model | : | 65 / 75 |
| Year | : | 1983 |
| Price | : | P.O.A. |
| Description | : | |
|
bore capacity in steel (diameter) 65mm

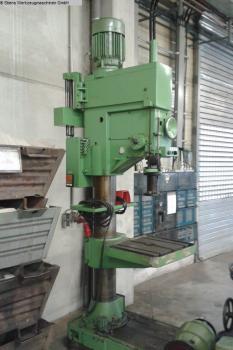

bore capacity in cast iron 75mm throat 450mm bore stroke 300mm bore spindles - Morse Taper MK 5 Number of revolutions 20 - 1.585mm/-1 transmission ratio 3 transmission ratio 1 20 - 660mm/-1 transmission ratio 2 30 - 1.000mm/-1 transmission ratio 3 45 - 1.585mm/-1 feed 0,1 - 0,4mm/-1 power capacity 5 / 7kW max. workpiece weight 500kg table surface area 650 x 600mm T-slots 3x 22mm swivellable 360° base plate 500 x 500mm spindle diameter 55mm dia. of quill 90mm column diameter 235mm total power requirement 7,2kVA weight of the machine ca. 1,5t dimensions of the machine ca. 2,0 x 1,5 x 3,0m Other information Pillar Drilling Machine ELHA - 65 / 75 | ||
