| Stockcode | : | 670322 |
| Type | : | Milling |
| Subtype | : | Portal |
| Manufacturer | : | SHIN NIPPON KOKI |
| Model | : | AIC 150 |
| Year | : | 1996 |
| Price | : | P.O.A. |
| Description | : | |
|
x-axis 5.800mm

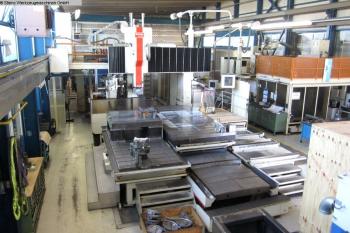

y-axis 2.700mm z-axis 1.000mm control Fanuc Main spindle: turning speed range - main spindle 30 - 3.000min/-1 power capacity - main spindel 18,5 / 15kW tool taper MAS BT 50 spindle diameter 95mm spindle nose JIS B6101 No.50 pallet changer: numbers of pallets 2 size of pallet 1.500 x 3.500mm max. workpiece weight 10.000kg distance between columns 2.000mm distance spindle center to table 50 - 1.050mm number of T-slots 16 distance pallets dual spacings 1.865mm Tool-Presetter: number of toolpositions 60pos. max. tool diameter 232mm max. tool length 400mm max. tool weight 20kg feeds: feed speeds X: 10.000 ~ 20.000mm/min feed speeds Y: 20.000mm/min feed speeds Z: 8.000mm/min total power requirement -kW weight of the machine ca. -t dimensions of the machine ca. -m Equipment Documents Chip conveyor Coolantsystem hydraulic system Automatic Tool Changer pallet changer Other information CNC - Portal Machining Center SHIN NIPPON KOKI - AIC 150 - incl. 2-pos. palletchanger 1.500 x 3.500 mm | ||
