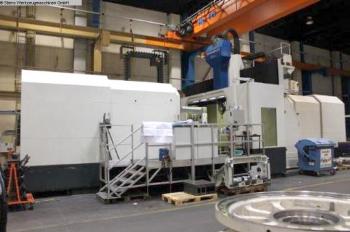

| Stockcode | : | 670321 |
| Type | : | Milling |
| Subtype | : | Portal |
| Manufacturer | : | MIKROMAT |
| Model | : | 20 V |
| Year | : | 2009 |
| Price | : | P.O.A. |
| Description | : | |
|
x-axis 5.700mm
y-axis 3.400mm z-axis 1.250mm control Sinumerik 840 D p.l. Siemens Main spindle: turning speed range - main spindle 10 - 6.000min/-1 power capacity - main spindel 37 / 56kW max. Torque 800 / 1.250Nm tool taper SK 50 spindle bearing diameter 120mm B - Axis +/- 95° C-Axis 0,001° work table: table surface area 2.400 x 5.000mm max. table load 15.300kg number of T-slots 14 T-slot - width 22mm T-slot - distance 160mm hollow 2.650mm distance spindle nose and table 100 - 1.350mm max. workpiece sizes 2.450 x 4.750 x (~1.300)mm Tool-Presetter: number of toolpositions 90pos. feeds: feed speeds X: 0 - 22.000mm/min feed speeds Y: 0 - 30.000mm/min feed speeds Z: 0 - 25.000mm/min Feed force X / Y / Z: 15kN total power requirement ca. 125kVA weight of the machine ca. 70t dimensions of the machine ca. 15,0 x 8,0 x 6,0m Equipment Documents Chip conveyor 2 x Coolantsystem through spindle coolant high pressure coolant 50 bar Milling spindle 3x Pick-Up-Changer Renishaw RMP 60 tool setting elektr. hand wheel Other information 5 Axis-Simulatn-CNC-Portal-Machining-Center MIKROMAT - 20 V - high precision 5-Side-Finish-Machining - positional deviation 0,003 mm - clamping table 1.600 x 3.000 mm - Pick-Up-Changer for Machining-Heads 4 pos. - Angle-Boring- and Millinghead WBFK 90/50 HR - Universal-Boring- and Millinghead UFK 90/50 HR - Special-Angleboring- und Millinghead WBFK 90/50 L - Spindle-Extension SV 450/50 This information is subject to errors in technical details. Inspection of machine is highly commended, TOP-Condition | ||
