| Stockcode | : | 670318 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

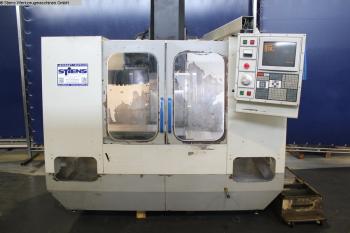

| Manufacturer | : | MIKRON - HAAS |
| Model | : | VCE 750 (VF 2) |
| Year | : | 1993 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 762mm
y-travel 406mm z-travel 508mm control HaasCNC Main spindle: turning speed range - main spindle 10 - 7.500min/-1 power capacity - main spindel 11 / 7,5kW tool taper ISO 40DIN 69871 work table: table surface area 914 x 356mm max. table load 1.350kg number of T-slots 3 T-slot - width 14mm T-slot - distance 125mm Tool-Presetter: number of toolpositions 20pos. change-time tool to tool 5sec change-time chip to chip 8sec max. tool diameter 89mm max. tool-dia with free toolbox 120mm max. tool length 200mm max. tool weight 6kg feeds: feed speeds 0 - 7.600mm/min rapid traverse 18m/min Feed force 15kN total power requirement ~ 18kW weight of the machine ca. 3,6t dimensions of the machine ca. 4,5 x 3,5 x 2,5m Equipment Documents Coolantsystem spindle oil cooler Other information CNC-Machining Center Vertical MIKRON-HAAS - VCE 750 (VF 2) | ||
| View all |
|
MIKRON - HAAS (1) VCE 750 (VF 2) (1) CNC Machining Centres (475) Vertical (370) |
Germany
