| Stockcode | : | 670316 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

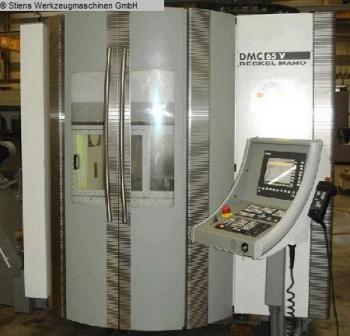

| Manufacturer | : | DECKEL MAHO |
| Model | : | DMC 65 V |
| Year | : | 2001 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 650mm
y-travel 500mm z-travel 500mm control Siemens 840 D table surface area 850 x 540mm max. table load 250kg T-slot - width 14mm number of T-slots 5 T-slot - distance 100mm numbers of pallets 2 Table change time approx. 5sec Motor spindle 1 - 30.000 rpm . Kind of drive AC power capacity at 100 % load 15kW power capacity at 40% ED 19kW turning speed range - milling 30.000U/min tool taper HSK-E 50 Tool changer 60pos. Type of magazin Kette / Chain rapid traverse X-axis 60m/min rapid traverse Y-axis 60m/min rapid traverse Z-axis 60m/min feed 60.000mm/min weight of the machine ca. 10,5t dimensions of the machine ca. 4,1 x 3,9 x 2,9m Other information Machining Center - Vertical DECKEL MAHO - DMC 65 V Equiped: Tool break. monitoring w. measuring (laser) Tool breakage monitoring device by laser including measuring tool length and tool diameter Tool magazine 60 tools HSK-A 63 or HSK-E 50 tool magazine with 60 positions for tool taper HSK-A 63 resp. HSK-E 50 Type of magazine Chain Type of gripper Pick up Number of tools 60 Int. cool. supply 40 bar for HSK w. conveyor Internal coolant supply 40 bar/580 psi for HSK tooling (23 l/min at 40 bar) (6.1 gal/min at 580 psi), total capacity 780 l (206.1 gal), including chip conveyor Spray gun with bed flushing Air blast cooling unit External air blast cooling through two pipes), selectable by M-function or softkey (coolant or air selectable) Manual control panel | ||
