| Stockcode | : | 670315 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

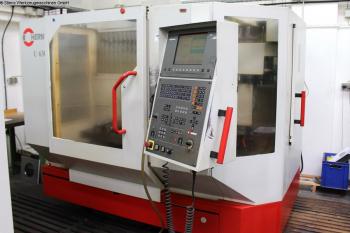

| Manufacturer | : | HERMLE |
| Model | : | U 630 T |
| Year | : | 1998 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 630 (875)mm
y-travel 500mm z-travel 500mm control TNC 410 Heidenhain Main spindle: turning speed range - main spindle 20 - 7.000min/-1 power capacity - main spindel 12 / 7,5kW max. Torque 484 / 302Nm tool taper SK 40 tool clamping 10.000N spindle diameter in front bearing 55mm swivellable manual 0 - 90° quill stroke 75mm work table: table surface area 900 x 528mm max. table load 400kg number of T-slots 8 Tool-Presetter: number of toolpositions 16pos. feeds: feed speeds 0 - 15.000mm/min Feed force 8kN rapid traverse ( X / Y / Z ) 15m/min total power requirement 14kVA weight of the machine ca. 4,5t dimensions of the machine ca. 4,0 x 3,6 x 2,2m Equipment Documents Coolantsystem hydraulic system elektr. hand wheel full splash guard Automatic Tool Changer 16pos. div. tooling work light Other information CNC - Bearbeitungszentrum Vertikal HERMLE - U 630 T - Vices shown on pictures are not equipped with the machine! | ||
