| Stockcode | : | 670313 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

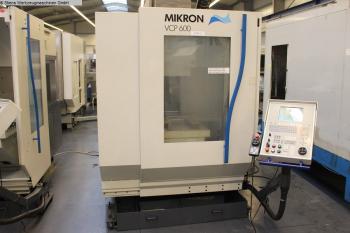

| Manufacturer | : | MIKRON |
| Model | : | VCP 600 #2/2 |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 600mm
y-travel 450mm z-travel 450mm control TNC 426 M Heidenhain Main spindle: turning speed range - main spindle 100 - 20.000min/-1 power capacity - main spindel 12 / 16kW tool taper HSK 63 A DIN 69893 work table: table surface area 850 x 530mm max. table load 400kg T-slots 6x 14H12 x 63mm Tool-Presetter: number of toolpositions 30pos. max. tool diameter 90mm max. tool-dia with free toolbox 110mm max. tool length 250mm max. tool weight 6kg allowable maximum weight 180kg change-time tool to tool ca. 5sec change-time chip to chip ca. 7sec total power requirement 40kW weight of the machine ca. 6,5t dimensions of the machine ca. 3,9 x 3,5 x 2,7m Equipment Documents Coolantsystem Other information CNC - Machining Center Vertical MIKRON - VCP 600 | ||
| View all |
|
MIKRON (12) VCP 600 #2/2 (1) CNC Machining Centres (475) Vertical (370) |
Germany
