| Stockcode | : | 670311 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

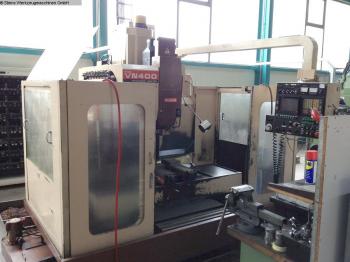

| Manufacturer | : | NIIGATA |
| Model | : | VN 400 |
| Year | : | 1987 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 600mm
y-travel 400mm z-travel 450mm control Fanuc 11 M Main spindle: turning speed range - main spindle 15 - 5.000min/-1 power capacity - main spindel 11 / 7,5kW max. Torque 222Nm tool taper BT 40 work table: table surface area 850 x 400mm max. table load 750kg distance spindle nose and table 200 - 650mm distance spindle center to column 480mm Tool-Presetter: number of toolpositions 24pos. tool taper BT 40 MAS II max. tool diameter 90mm max. tool-dia with free toolbox 140mm max. tool weight 10kg max. tool length 300mm feeds: feed speeds max. 14.000mm/min rapid traverse 18m/min number of simltaneous controlled axis 3 input unit 0,001mm total power requirement 35kVA weight of the machine ca. 4,5t dimensions of the machine ca. 4,0 x 4,0 x 2,8m Equipment Documents Chip conveyor Coolantsystem hydraulic system Automatic Tool Changer 24 pos. Other information CNC - Machining Center Vertical NIIGATA - VN 400 - Operating-Hours appreciated: ca. 12.000h - vices are NOT equipped with the machine | ||
| View all |
|
NIIGATA (3) VN 400 (1) CNC Machining Centres (475) Vertical (370) |
Germany
