| Stockcode | : | 670310 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

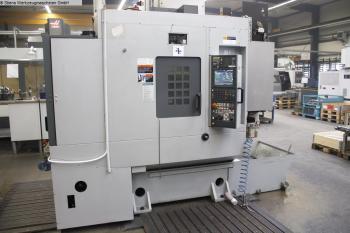

| Manufacturer | : | MORI SEIKI |
| Model | : | ACCUMILL 4000 |
| Year | : | 2006 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 560mm
y-travel 430mm z-travel 350mm control MSX 805 III distance spindle /table 150 - 500mm work height max. 900mm Main spindle: turning speed range - main spindle 12.000min/-1 power capacity - main spindel 5,5 / 3,7kW tool taper HSK 30 spindle diameter in front bearing 50mm work table: numbers of pallets 2pos. table surface area 700 x 400mm max. table load 200kg T-slots 4x 18 x 100mm Tool-Presetter: number of toolpositions 20pos. max. tool diameter 60mm max. tool-dia with free toolbox 100mm max. tool length 200mm max. tool weight 3kg max. total weight 40kg change-time tool to tool 0,7sec change-time chip to chip 1,9sec feeds: rapid traverse ( X / Y / Z ) 48m/min feed speeds 1 - 48.000mm/min Tipp feed 15 / 0 - 1.260mm/min total power requirement 22kVA weight of the machine ca. 3,0t dimensions of the machine ca. 2,5 x 2,5 x 2,5m Equipment Documents chip tray Coolantsystem through spindle coolant Signal-Light spindle oil cooler hydraulic system Other information CNC - Machining Center Vertical MORI SEIKI - AccuMill 4000 - 2-pos. pallet-changer - Vices and tooling is NOT equipped with the machine - Operating-Hours: Power-On ca. 4.700h / Spindle ca. 2.000h | ||
| View all |
|
MORI SEIKI (54) ACCUMILL 4000 (1) CNC Machining Centres (475) Vertical (370) |
Germany
