| Stockcode | : | 670307 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

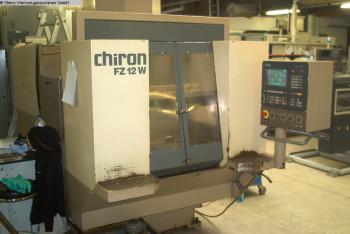

| Manufacturer | : | CHIRON |
| Model | : | FZ 12 W |
| Year | : | 1988 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 500mm
y-travel 300mm z-travel 280mm control Sinumerik 810 M Siemens feed rapid motion - x-axis 20m/min rapid motion - y-axis 20m/min rapid traverse Z-axis 20m/min feed power 6000N feed speeds 1 - 4.000mm/min working area max. table load 500kg surface area 870 x 550mm Distance spindle/table max. 270 - 550mm throat max. 315mm spindle tool taper SK 30 Main spindle 5,5KW turning speed range - stepless 20 - 7.100U/min Torque 35Nm spindle diameter 50mm tool clamping hydromechanic tool change unit 12 - fach max. tool diameter 63mm max. tool-dia with free toolbox 100mm max. tool length 220mm max. tool weight 5kg tool changing time 1,0sec change-time chip to chip 3,2sec total power requirement 8,0kVA weight of the machine ca. 3,0t dimensions of the machine ca. 3,5 x 3,5 x 3,0m Equipment Documents Coolantsystem Automatic Tool Changer 12 pos. Other information CNC - Machining Center Vertical CHIRON - FZ 12 W - Interchangeable Table | ||
