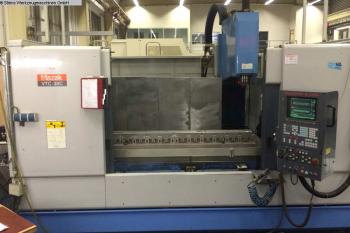

| Stockcode | : | 670306 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | MAZAK |
| Model | : | VTC 30 C |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 1660mm
y-travel 760mm z-travel 660mm control Mazatrol M Plus distance spindle nose and table 155 - 815mm distance spindle center to column 808mm table-size 760 x 2000mm table load 1t T-slots 18 H8 T-slot - distance 100mm table height over floor 750mm rapid traverse X-axis 24m/min rapid traverse Y-axis 24m/min rapid traverse Z-axis 20m/min feeds - fine adjustment 1 - 5000mm/min distance spindle /table 155 - 815mm turning speeds 40 - 7000U/min tool adaptor CAT 40 drive milling spindle 11 / 7,5kW Torque 70Nm no. of tools in the magazine 24Stück max. tool diameter 80mm max. tool-dia with free toolbox 110mm max. tool weight 8kg max. workpiece length 350mm tool changing time 15sec total power requirement 28kW weight of the machine ca. 8,7t dimensions of the machine ca. 5,5 x 3,8 x 3,2m Equipment Chip conveyor Coolantsystem tool monitoring full splash guard Other information CNC - Machining Center Vertical MAZAK - VTC 30 C | ||
| View all |
|
MAZAK (114) VTC 30 C (1) CNC Machining Centres (475) Vertical (370) |
Germany
