| Stockcode | : | 670304 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | MORI SEIKI |

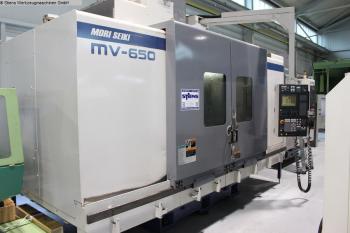

| Model | : | MV 650 / 50 |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 1.530mm
y-travel 660mm z-travel 650mm control MSG 803MAPPS work table: table-size 1.700 x 660mm max. table load 2000kg number of T-slots 6 T-slot - width 18mm T-slot - distance 100mm Main spindle: turning speed range - milling ~ 6.000U/min no. of turning speeds 2 power capacity - milling spindle 18,5 / 15kW tool taper MAS BT 50 spindle diameter in front bearing 100mm distance spindle /table 200 - 850mm distance spindle center to column 689,6mm internal coolant system feed 70bar Tool-Presetter: number of toolpositions 30pos. max. tool diameter 120mm max. tool length 450mm max. tool weight 20kg feeds: feed speeds 1 - 10.000mm/min rapid traverse 24m/min Tipp feed 0 - 1.260mm/min total power requirement 55,1kVA weight of the machine ca. 16t dimensions of the machine ca. 4,8 x 5,0 x 3,4m Equipment Chip conveyor Coolantsystem triple signal light elektr. hand wheel work light spindle oil cooler through spindle coolant 70bar Other information CNC-Machining Center - Vertical MORI SEIKI - MV 650 / 50 | ||
| View all |
|
MORI SEIKI (54) MV 650 / 50 (1) CNC Machining Centres (475) Vertical (370) |
Germany
