| Stockcode | : | 670297 |
| Type | : | CNC Machining Centres |
| Subtype | : | Universal |

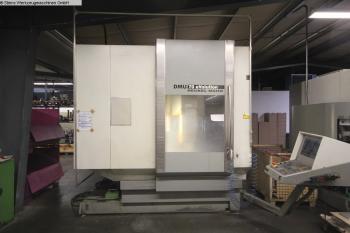

| Manufacturer | : | DECKEL MAHO |
| Model | : | DMU 70 EVOLUTION |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 750mm
y-travel 520mm z-travel 520mm control TNC 426Heidenhain Main spindle: turning speed range - main spindle 20 - 18.000min/-1 power capacity - main spindel 35 / 25kW max. Torque 130 / 87Nm tool taper BT 40 NC-Tilting round table: table surface area 700 x 500mm Swivel range B-Axis 180° Swivel range C-Axis 0,001° max. table load 350kg center hole 30 H6mm T-slots 7x 14H7 x 63mm table turning speeds 21,5rpm tool magazin: number of toolpositions 32pos. max. tool length 315mm max. tool diameter 105mm max. tool-dia with free toolbox 130mm max. tool weight 6kg feeds: rapid traverse ( X / Y / Z ) 50 / 50 / 50m/min feed speeds 20.000mm/min Feed force X / Y / Z: 8 / 8 / 7kN total power requirement 48kVA weight of the machine ca. 10t dimensions of the machine ca. 6,5 x 3,5 x 2,9m Equipment Documents elektr. hand wheel Rotary screen Coolantsystem Other information 5 Axis-CNC-Machining Center DECKEL MAHO - DMU 70 eVolution - 5 Axis Simultan-Processing - Operating-Hours: Power-On: ca. 75.000h / Spindle: ca. 32.500h | ||
| View all |
|
DECKEL MAHO (25) DMU 70 EVOLUTION (1) CNC Machining Centres (475) Universal (160) |
Germany
